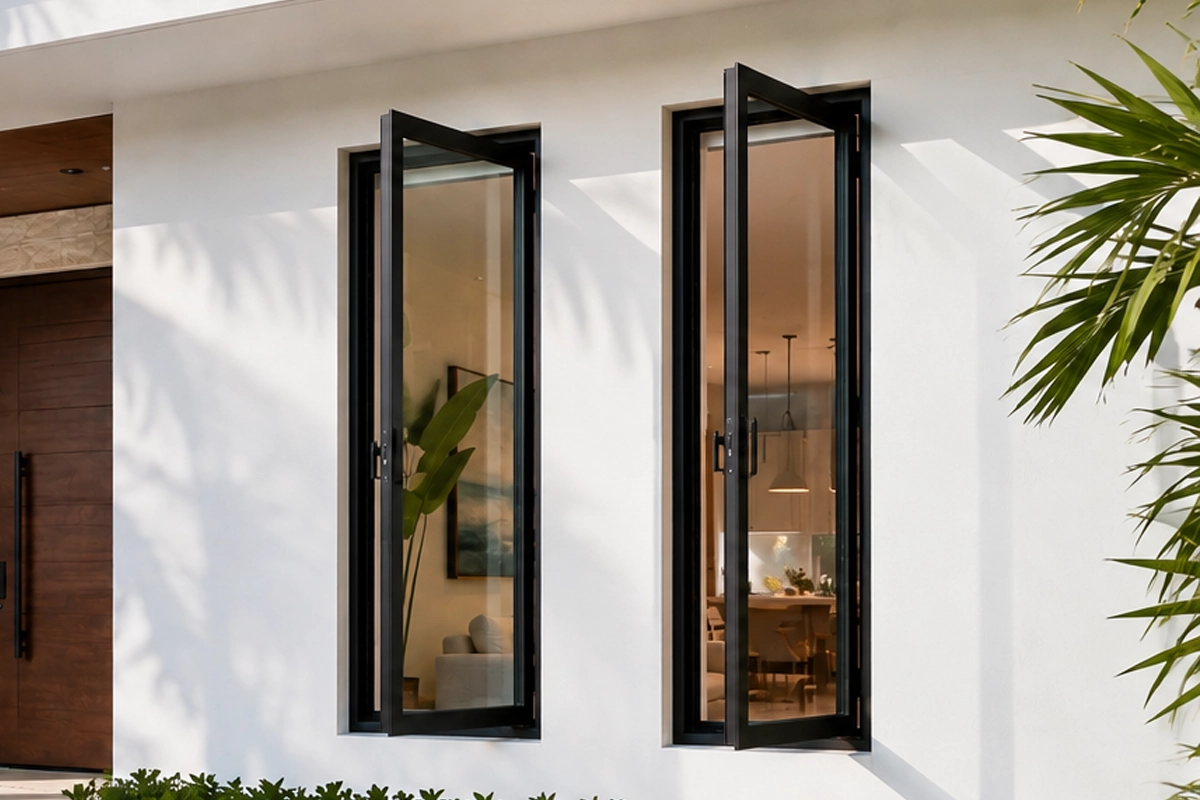

Eco-Guard™ Series 500 Casement Outswing Window
The Series 500 Casement Outswing Window includes a stainless steel operator, multipoint lock, nesting handle, and strong impact-rated performance.
Preview configurations, frame colors, and glass colors. Visualice configuraciones, colores de marco y colores de vidrio.
The visualizer uses the image combinations generated from this model’s configuration, frame color, and glass color options. El visualizador usa las combinaciones de imágenes generadas por configuración, color de marco y color de vidrio.
Product Visualizer Visualizador de Producto
Eco-Guard™ Series 500 Casement Outswing Window
A Florida Product Approved casement window that opens like a door.
Configuration Configuración
Frame Color Color de Marco
Glass Color Color de Vidrio
Image updates when you select a configuration, frame color, or glass color. La imagen cambia al seleccionar configuración, color de marco o color de vidrio.
Product Details Detalles del Producto
Eco-Guard™ Series 500 Casement Outswing Window
The Series 500 Casement Outswing Window includes a stainless steel operator, multipoint lock, nesting handle, and strong impact-rated performance.
Selected Detail Detalle Seleccionado
Features
- Heavy-gauge aluminum T6 alloy
- Stainless steel assembly screws
- Double weather-stripping
- Extruded snap-on glazing beads
- Flange frame
Selected Detail Detalle Seleccionado
Dimensions & Performance
- 2 3/4" frame depth
- Maximum width: 37"
- Maximum height: 76"
- Maximum size: 37" x 76" (LMI), 30" x 70" (SMI)
- Design pressure: +70/-75 psf
Selected Detail Detalle Seleccionado
Additional Features
- 5/16" HS/HS glass
- Stainless steel operator
- Multipoint lock
- Nesting handle
- NFRC certified
- Florida Product Approval: Large Missile and Small Missile
Selected Detail Detalle Seleccionado
Options
- 7/8" TMP/HS and 7/16" HS/HS glass options
- Energy efficient LoE coatings
- Equal leg adapter
- Glass with argon
- Extruded double-applied 1" colonial muntins
Product Selection Support Ayuda para Seleccionar Producto
Need to confirm if this model fits your opening? ¿Necesita confirmar si este modelo funciona para su abertura?
Send us the opening size, project location, preferred glass color, frame color, and any HOA or building requirements. We can help verify the right model and installation approach. Envíenos el tamaño de la abertura, ubicación del proyecto, color de vidrio, color de marco y requisitos de HOA o edificio. Podemos ayudarle a verificar el modelo y la instalación adecuada.
Impact-rated guidance Guía para impacto
We help match the model, glass package, and installation needs for your project. Le ayudamos a elegir modelo, paquete de vidrio e instalación para su proyecto.
Visual options Opciones visuales
Frame color, glass color, and configuration combinations are ready for client previews. Las combinaciones de marco, vidrio y configuración están listas para visualizar.
