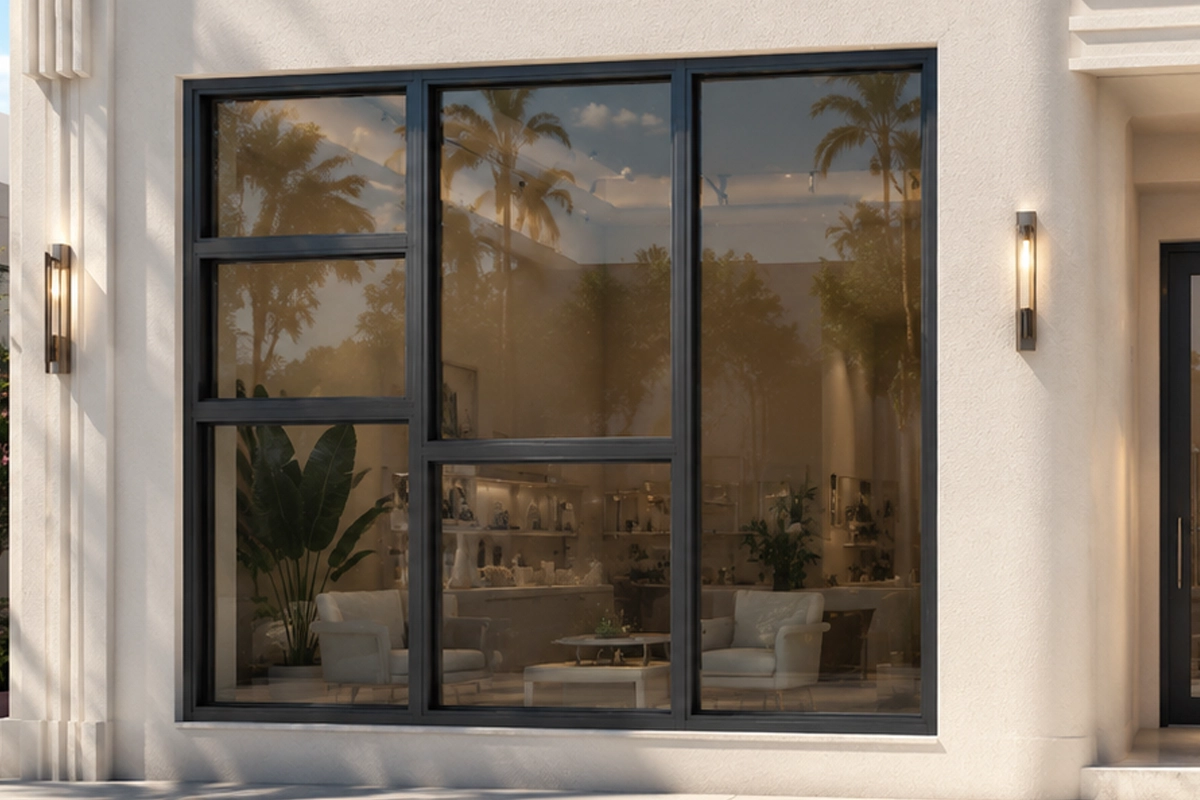

Eco-Guard™ 400 Frontset Storefront Window
The 400 Frontset Storefront Window is a commercial impact system with a 5-inch frame depth, internally wet glazed construction, and the ability to join units into large walls.
Preview configurations, frame colors, and glass colors. Visualice configuraciones, colores de marco y colores de vidrio.
The visualizer uses the image combinations generated from this model’s configuration, frame color, and glass color options. El visualizador usa las combinaciones de imágenes generadas por configuración, color de marco y color de vidrio.
Product Visualizer Visualizador de Producto
Eco-Guard™ 400 Frontset Storefront Window
A Florida Product Approved storefront window with 5-inch frame depth and high design pressures.
Frame Color Color de Marco
Glass Color Color de Vidrio
Image updates when you select a configuration, frame color, or glass color. La imagen cambia al seleccionar configuración, color de marco o color de vidrio.
Product Details Detalles del Producto
Eco-Guard™ 400 Frontset Storefront Window
The 400 Frontset Storefront Window is a commercial impact system with a 5-inch frame depth, internally wet glazed construction, and the ability to join units into large walls.
Selected Detail Detalle Seleccionado
Features
- 9/16" heat strengthened laminated glass with PVB
- Double weatherstripping
- Self-mating snap-in panels
- Stainless steel assembly screws
- Extruded snap-on glazing beads
- Internally wet glazed
- Heavy-gauge aluminum T6 alloy profile
- Units can join each other to form a large wall
Selected Detail Detalle Seleccionado
Dimensions & Performance
- 5" frame depth
- Maximum width: 56 1/2"
- Maximum height: 150 3/4"
- Maximum pressure design: +80/-130 psf Large Missile, +90/-130 psf Small Missile
- Large and Small Missile impact
- Florida Product Approval
Selected Detail Detalle Seleccionado
Options
- 1 3/16" insulated laminated glass
- 9/16" heat strengthened laminated glass with SG
- Aluminum/steel reinforcement
- Aluminum slats as glass substitute
Product Selection Support Ayuda para Seleccionar Producto
Need to confirm if this model fits your opening? ¿Necesita confirmar si este modelo funciona para su abertura?
Send us the opening size, project location, preferred glass color, frame color, and any HOA or building requirements. We can help verify the right model and installation approach. Envíenos el tamaño de la abertura, ubicación del proyecto, color de vidrio, color de marco y requisitos de HOA o edificio. Podemos ayudarle a verificar el modelo y la instalación adecuada.
Impact-rated guidance Guía para impacto
We help match the model, glass package, and installation needs for your project. Le ayudamos a elegir modelo, paquete de vidrio e instalación para su proyecto.
Visual options Opciones visuales
Frame color, glass color, and configuration combinations are ready for client previews. Las combinaciones de marco, vidrio y configuración están listas para visualizar.
Compare related window models. Compare modelos relacionados.
Review other models in the same window family before making a final selection. Revise otros modelos de la misma familia antes de tomar una decisión final.
